Szczegóły Produktu:
|
| Wymiar: | 1600 (L) X1688 (W) X1560 (H) | Głowy: | 20-head (10 głów* 2 ramiona); z 31-dołkową biblioteką dyszy |
|---|---|---|---|
| Rozmiar PCB: | Przenośnik jednotorowy: 600*50-450 mm; Przenośnik podwójny: 600*50-250 mm | Prędkość: | 82000 cph (optymalne) |
| Podajnik: | Obsługa 100pcs NXT Electric Feeders | Dokładność montażu: | (Xy) ± 40 μm CPK ≥1,0 |
| Część: | 01005, 0201,0402, -5050, SOP/QFP/QFN/BGA/LED .. | Waga netto: | 2000 kg |
| Kamera: | Latający aparat: 10pcs*2 ramiona (rozmiar komponentu 16*16 mm); Marka kamera: 2pcs*2 ramiona | Dostawa PCB: | 3 sztuki automatyczne dostarczanie z szynami, szerokość można dostosować za pomocą oprogramowania |
| Zasilacz: | AC380V (50 Hz, 3 faza) 6 kW | Najwyższy komponent: | 12 mm |
| Podkreślić: | 20-head SMT pick and place machine,dual-arm PCB assembly machine,high-speed TS20 placement machine |
||

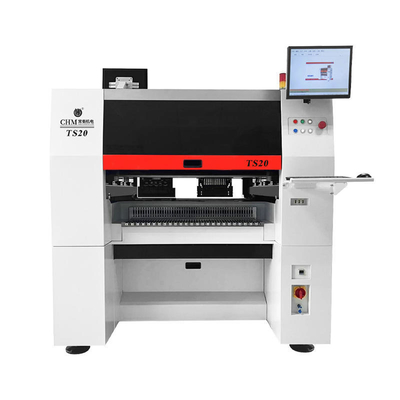

Dual-arm Dual-lane high speed high precision 20-head SMT Pick and Place Machine TS20
Smart software Full In-line Large SMT production line
1. Introduction
Double the Arms, Double the Lanes, Double the Output.
This TS20 adopts the integrated structure of precision machinery and uses Charmhigh independent research and development results.
It has the characteristics of high precision, high stability, complete functions and convenient use.
Unleash unparalleled productivity with our advanced dual-arm technology operating on two independent lanes.
Experience precision at speed and achieve a superior return on investment.
The TS20 is built to dominate your high-volume SMT production challenges.
2. Machine features
1. Thermal Compensation
2. Mounting Range: The minimum: 01005/maximum:16mm(L)×16mm(W)
3. Built-in Vacuum Pump
4. Automatic nozzle change(31 sets nozzle library)

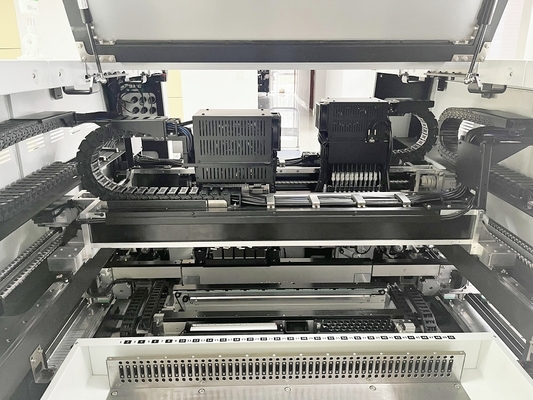

5. Dual Lane Shuttle Conveyor

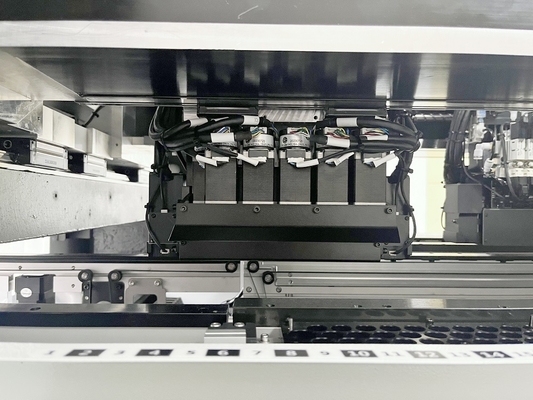

6. 10 head * 2 gantry(front and rear arms)
7. 100 NXT8mm feeder stacks

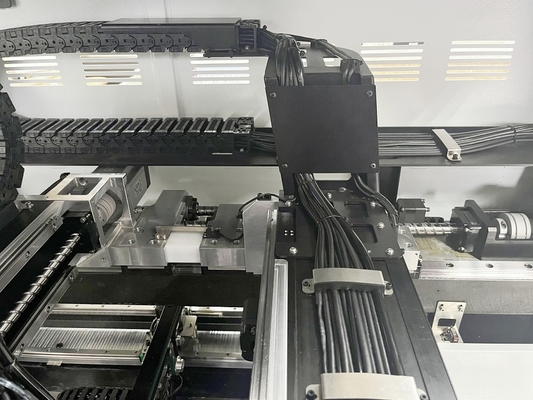

8. Y-axis gantry integral casting
For more machine features, please consult our account manager
TS20 working video:
https://www.youtube.com/watch?v=Z94UJfxZoao
TS20 parameters:
Dual-arms, dual-lane, high accuracy (XY)±40μm CPK≥1.0, high speed high production 82000 CPH
Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory direct supply with guarantee.
We provide online Q/A and troubleshooting support and technical advice service.
We provide one to one after-sale service. Each machine 100% tested well before ship out.
